Heavy Duty Steel Storage Shelf Wire Mesh Decking

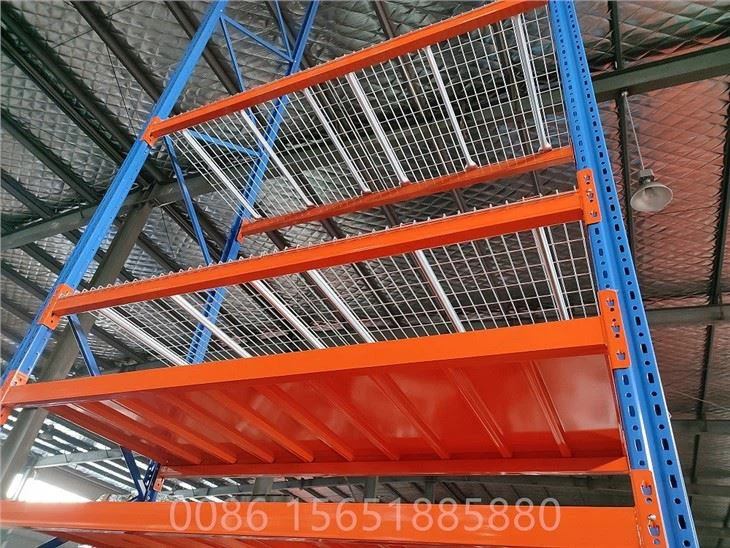

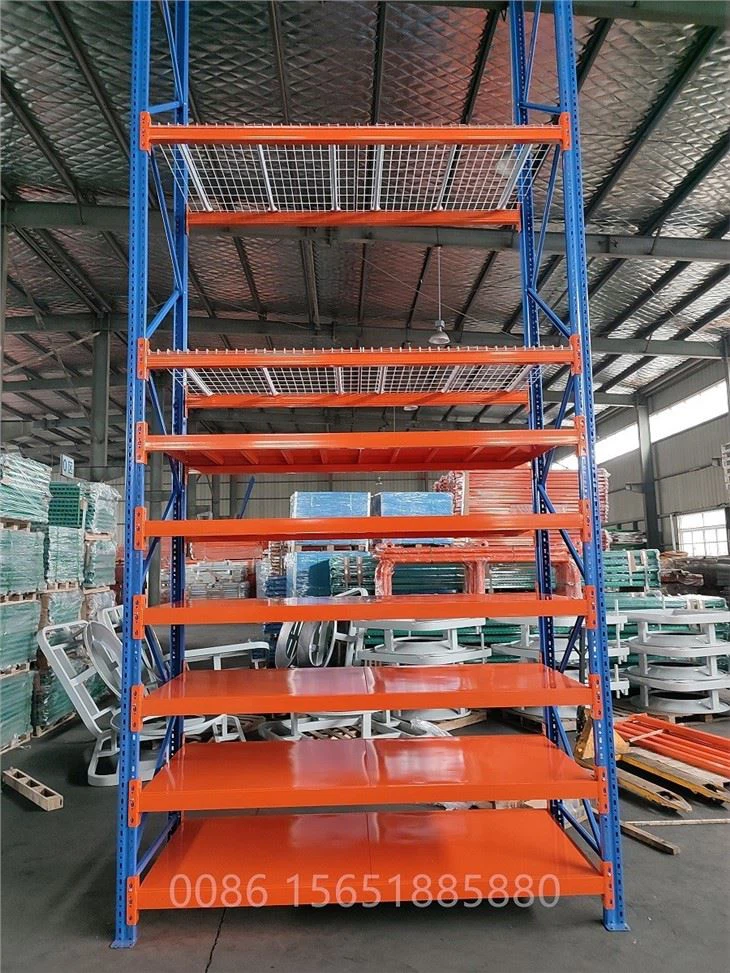

Wire mesh deck is commonly used as a safety measure on selective pallet rack to prevent pallets or the products stored on them from falling through the rack structure. It is wildly used in warehouse, as an acompany of rack. The outside finish of wire mesh can be powder coated, galvanized, and also spray paint.

Wire mesh decking was made of round steel of dia.4mm, dia.5mm or dia.6mm. Matched with reinforcements to enhance the loading capacity. Reinforcements are the main place to take loads. According to the goods size and shape, the mesh can be made at 100mmx50mm, 100mmx25mm, 50mmx50mm and 50mmx25mm. The most used one is 100mm x 50mm. The width of wire mesh decking generally vary from 800mm to 1350mm. The depth is decided by the racking frame's depth. If use the strongest materials, each decking can load as much as 1500kg.

For a quotation, you only need to tell us your racking frame's depth, beam's length and each level's loading 容量。これらの数字によって、私たちはあなたに簡単な見積もりをすることができます。

商品名	頑丈な鋼線収納ラックデッキ
素材	鋼線
積載能力	500〜2000 kg
金網サイズ	36''46'',42''46'',48''46'',36''58'',42''58'',48''58''
グリッドサイズ	5050mm、50100mm、100100mm
直径	3. 0 mm、4。0 mm、5。0 mm
表面処理	電気亜鉛メッキ（三価クロム）
MOQ	10個
支払い	LC、TT、ウエスタンユニオン、Paypalが利用可能です
梱包明細	標準的な輸出耐航性パッキング
